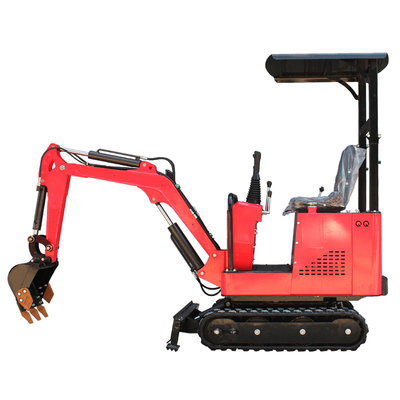

Construction Material Shops 1.0 Ton Mini Digger Import Hydraulic Crawler Excavators Mini Digger With Small Track Excavating Machinery

1 Set
MOQ
$3,100.00(1 - 9 Sets) $3,050.00(>=10 Sets)
Price
Construction Material Shops 1.0 Ton Mini Digger Import Hydraulic Crawler Excavators Mini Digger With Small Track Excavating Machinery
Features Gallery Product Description Request A Quote
Features
Specifications
Applicable Industries: Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Farms, Home Use, Retail, Construction Works , Energy & Mining
Showroom Location: None
Condition: New
Moving Type: Crawler Excavator
Operating Weight: 1ton
Bucket Capacity: 0.022
Maximum Digging Height: 2550mm
Maximum Digging Depth: 1787mm
Machine Weight: 1000 Kg
Max Digging Radius: 2992mm
Rated Speed: 1.9km/h
Warranty: 1 Year
Hydraulic Cylinder Brand: China
Hydraulic Pump Brand: China
Hydraulic Valve Brand: China
Engine Brand: China
UNIQUE SELLING POINT: High Power Engine
Power: 7kw
Machinery Test Report: Provided
Video Outgoing-inspection: Provided
Marketing Type: Other
Warranty Of Core Components: 1 Year
Core Components: PLC, Pressure Vessel, Engine, Gear, Motor, Pump, Bearing, Gearbox
Product Name: Mini Excavator
Name: Exvacator
Color: Red
Keywords: Small Crawler Excavator
Key Words: Escavator Machines
Arm Digging Force: 4.6 KN
Bucket Digging Force: 7.2 KN
Overall Length: 2876mm
Overall Height (to Top Of Cab): 2225mm
Counterweight Ground Clearance: 385mm
Basic Infomation
Payment & Shipping Terms
Product Description
1000kg hydraulic mini excavator with competitive prices --CE ，EPA ， Euro 5
We will provide :
1.English manual with sketches of
machine structure of this standard model; 2.Full catalog of QILU mini excavators for reselling(pictures and videos for customers
reselling); 3.Full videos about operating teaching including the after sale services steps; 4.Extra filters and toolbox for easy
maitain; 5.Spare parts by air express(low weight); 6.30% advance payment for production starting,the balance after the customer'sconfirmation by videos and pictures.
We also have 1ton,1.5 ton, 1.6 ton, 1.7 ton, 1.8 ton, 2 ton, 2.5ton and 3.5ton mini Excavator for you to choose!
Product Paramenters







QL-10ECO
Rated Power
9.2 kw
Bucket Capacity
0.03m³
engine type
CHANGCHAI/KOOP
Operating Weight
1000kg
Maximum digging force
7.5KN
Pump type
Single gear pump
working pressure
14Mpa
Swing speed
12Rpm
Walking speed
2.2Km/h
Gradeability degree
30°
Ground pressure
19Kpa





Working scope
Maximum digging distance
2450mm
Max. Digging Depth
1410 mm
Max. Digging Height
2420mm
Maximum unloading height
1650mm
Minimum Gyration Radius
1100mm
Maximum ground clearance of bulldozer
120mm
Maximum support depth of bulldozer
200mm



Dimensions
Total Width
880mm
Toal Height
1460-2000mm
Total Length
2430mm
Minimum ground clearance
80mm
Track ground length
1140mm
Track width
150mm
Details Images
Optional Attachments
Other Products
Company Profile
Qilu Industry and Trade was established in 2016. Its parent company, Qilu Special Steel, is an established special steel manufacturer established in 1985. It is also one of the largest special steel manufacturers in China. Based on the experience in the material field and many years of supply, it is well-known worldwide With the experience of machinery manufacturers, the company has invested a lot of money into the machinery manufacturing field. The long-term goal is to become a well-known super-large machinery enterprise.
Based on our professional technical management and service team, the company has passed the CE certification audit and strictly implemented the quality management process. Through 20 years of material export experience and 5 years of mechanical product export experience, we know how to meet the needs of customers in different countries. We have established a professional and reliable supply chain to provide customers with quality products with stricter quality management.And has been accepted and recognized by customers all over the world.
We look forward to your consultation and understanding, and hope that our professional experience can solve your product questions, reduce your procurement costs, and improve your product experience. We believe that our products and services will make you feel different quality.
Packing & Delivery
Contact Us
FAQ
Q:Are u a manufacturer?
A:We are a professional manufacturer specializing in manufacturing excavators . We supply excavators for the wholesalers and dealers from different countries.
Q:Can you do OEM?
A:Yes, we can. We can do OEM & ODM for all the customers with customized artworks of PDF or AI format.
Q: What's your MOQ of this term?
A: 1 set.
Q: How long is your warranty?
A:Guarantee for 12 mounths starting from products arriving the destination port or 2000 working hours.
Q: What's your delivery time?
A: Delivery timely about 7 days after receiving the deposit.
Q:Which incoterms 2010 terms can we work ?
A：Normally we work on FOB, CFR, CIF.
