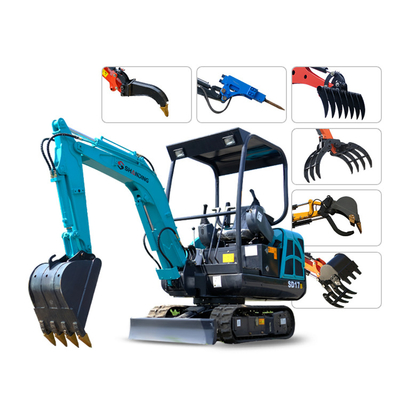

Farms Excavator Mini Excavators Small Crawler Digger CE EPA China 1ton 2 Ton 3ton Hydraulic Farmer Motor Cylinder Training

1 Unit
MOQ
$10,950.00(1 - 1 Units) $10,700.00(>=2 Units)
Price
Farms Excavator Mini Excavators Small Crawler Digger CE EPA China 1ton 2 Ton 3ton Hydraulic Farmer Motor Cylinder Training
Features Gallery Product Description Request A Quote
Features
Specifications
Applicable Industries: Farms, Home Use, Retail, Construction Works , Energy & Mining, Other
Showroom Location: Germany, Japan
Condition: New
Moving Type: Crawler Excavator
Operating Weight: 1.5TON
Bucket Capacity: 0.06cbm
Maximum Digging Height: 3300mm
Maximum Digging Depth: 1950mm
Machine Weight: 1600 Kg
Max Digging Radius: 3600mm
Rated Speed: 2.9km/h
Warranty: 1 Year
Hydraulic Cylinder Brand: Eaton
Hydraulic Pump Brand: SHIMADZU
Hydraulic Valve Brand: Eaton
Engine Brand: Laidong
UNIQUE SELLING POINT: Fully Hydraulic System
Power: 14.8kw
Machinery Test Report: Provided
Video Outgoing-inspection: Provided
Marketing Type: New Product 2020
Warranty Of Core Components: 1 Year
Core Components: PLC, Pressure Vessel, Engine, Gear, Motor, Pump, Gearbox
Product Name: Mini Crawler Excavator
Brand: Shanding
Model: SD17B
Engine: Laidong
Rated Power: 14.7kw
Weight: 1600kg
MOQ: 1 Set
Swing Motor: Eaton
Walking Type: SANYO
Bucket Width: 450mm
Basic Infomation
Model Number: SD17B
Payment & Shipping Terms
Packaging Details: BOX
Supply Ability: 10000 Unit/Units per Month
Product Description

Hydraulic Excavator Mini Excavators Small Crawler Digger CE EPA China 1ton 2 Ton 3ton Farmer Motor Cylinder Training

Machine parameters

Model

SD17B

Operating Weight

1600Kg

Bucket Capacity

0.06m³

Rated Power

14.8 kw,14.7 kw,10 kw

Max.Hydraulic System Pressure

16mpa

Max. Grade ability

30°

Max. Ground Pressure

23.7N/m²

Max Walking Speed

2.9Km/h

Max. Traction

10KN

Platform Rotary Speed

9-11r/min

Boom swing function

yes

Crawler stretch function

optional

Dimensions

Overall Length

3635mm

Overall Width

1000mm

Overall Height

2150mm

Arm Length

900mm

Boom Length

1650mm

Track Length

1420mm

Track Width

230mm

Ground Clearance

305mm

Platform Width

990mm

Platform Ground Clearance

480mm

Bucket Width

450mm

Working range

Max. Digging Height

3300mm

Max Digging Depth

1950mm

Max. Digging Radius

3600mm

Max Dumping Height

2080mm

Radius of Tail Gyration

1180mm

Max. Sinking Depth of Bulldozer

200mm

Max. Lifting Depth of Bulldozer

225mm

Machine configure

Engine Model

Laidong ,Perkins,Yanmar

Main valve

Husco

Main Pump

Futai 3 pumps system

Rotation Motor

Eaton

Walking Motor

SANYO

We Pay More Attention To Details, Details Are Our Quality

1. It has excellent work efficiency and cost performance.

2. The standard bulldozer can level the site and backfill the earth to increase the stability of the machine.

3. Simple, small and flexible, easy to transport, can work in small sites, especially suitable for orchards, such as kiwi, vineyards, oranges, navel oranges, digging trenches, fertilizing, and weeding.

4. It has multiple functions of mining, crushing, removing hooks, drilling, and earthwork, and can quickly replace accessories, greatly improving the utilization rate of the machine.

Options:

1.In addition to the standard bucket, we also provide more auxiliary tools for you to choose from, including Hydraulic Breaker, Toothless Bucket from 50cm to 120cm, Auger. . . . . .

2.Color and style can be customize

Model

SD17B(HOT)

SD25U

SD30U(HOT)

SD40B

Total Weight

1600KG

2500kg

2870kg

3650kg

Rated Power

14.7KW

15.2kw

15.2kw

34kw

Engine

Laidong /Perkins /Yanmar

Perkins/Yanmar

Perkins/Yanmar

Yanmar/Changchai

Bucket Capacity

0.06cbm

0.1cbm

0.1cbm

0.2cbm

Maximum digging radius

3600mm

4150mm

4375mm

4730mm

Max. Digging Depth

1950mm

2550mm

2560mm

3100mm

Max. Digging Height

3300mm

4300mm

3865mm

4500mm

Gradeability

30

30

30

35

Overall Width

1000mm

1300mm

1540mm

1700mm

Shipping & Payment
For Transportation, We Have Three Methods: Sea, Air, And Land, And Support Multiple Payment And Multiple Transportation Methods. You Can Receive This Mini Excavator You Like At The Port, And Of Course You Can Also Receive The Mini Excavator At Your Doorstep. (The Cost Is Higher, Not Recommended), We Guarantee That We Will Not Charge Any Intermediate Fees And Extra Fees That Exceed The Shipping Cost, We Just Want You To Get This Favorite Mini Excavator Faster And More Preferentially!
