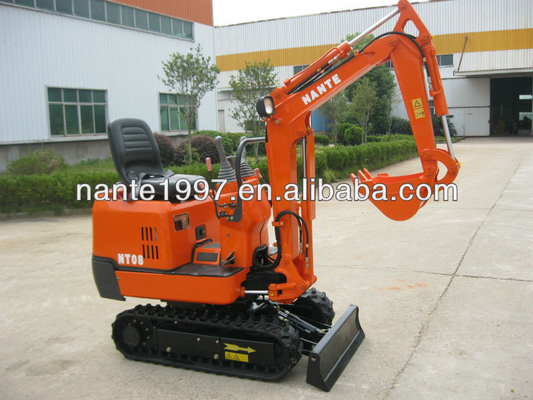

Nante hydraulic crawler mini excavator 1 ton with CE for garden
Our company is Specialized in design and manufacture of Medium & Mini construction machinery and its spare parts.
With 13 years of experience and expertise in production,Annual output:2000UNITS
We are confident that we can provide our customer with:
ENGINE
Model | YANMAR 2TNV70 |
Cylinders | 2 |
Bore/Sttoke | 70*74 |
Displacement | 0.569L |
Fuel injection | direct |
Fuel injection pump | Mechanical |
Fuel | Diesel |
Fuel filter | Full flow |
Cooling | water-cooling |
Horswpower(net) | 7.3kw@2400rpm |
Maximum torque(net) | 3.3N.m@1800rpm |
OPERATING WEIGHT
With 75kg operator | kg | 820 |
Groungd pressure | kpa | 25 |
ELECTRICAL
Voltage | v | 12 |
Alternator | amp | 10 |
Batteries | v | 12 |
Heavy-duty | ||
UNDERCARRIAGE
Number of rollers | ||
Top | 0 | each track |
Bottom | 3 | each track |
Gradability | 30°(58%) | |
OVERALL DIMENSIONS
Overall height | mm | 1350 |
Overall length | mm | 2760 |
width of upperstructure | mm | 760 |
Track overall length | mm | 1220 |
Track overall width shoes | mm | 820 |
Track shoe width | mm | 190 |
Genter to center(inler to sprocket) | mm | 900 |
Upperstructure ground clearance | mm | 360 |
Minimum ground clearance | mm | 160 |
Tail swing radius | mm | 820 |
Backfill blade height | mm | 200 |
Working weight | mm | 820 |
Ground pressure | kg | 25 |
Tail swing overhang |
BOOM/ARM
Boom | Swing | ° | 75 left/45 right |
Length | mm | 1350 | |
Boom weight | kg | 30 | |
Arm | Length | mm | 700 |
Arm weight | kg | 15 |
PERFORMANCE SPECS
Maximum dig radius | mm | 2730 |
Dig radius at groundline | mm | 2650 |
Maximun dig depth | mm | 1500 |
Dump height | mm | 2000 |
Overall reach height | mm | 2720 |
Bucket rotation | ° | 174 |
Vertical straight wall dig depth | mm | 1040 |
Lift above groud | mm | 105 |
Drop below groud | mm | 210 |
Minimum rotation radius | mm | 1005 |
Arm digging force | KN | 8.5 |
Bucket digging force | KN | 9.6 |
SERVICE CAPACITIES
Hydraulic tank | Refill capacity | L | 16 |
Total system | L | 20 | |
Engine | w/filter change | L | 1.5 |
Fuel | L | 9.5 | |
Radiator | L | 2.5 |
HYDRAULICS
ITALY IMPORT MOTOR
| Pumps | Gear pump | |||
| Capacity-Maximum | L/min | |||
| System relief pressure | MPa | |||
| Control valves | 9 function multiple control vavle | |||
| Swing | Motor | Fixed displacement | ||
| Speed | 9.2rpm | |||
| Brake | Hydraulically released with dual cushion relief | |||
| Tail swing radius | 820mm | |||
| Travel | Motor | Fixed displacement axial piston design | ||
| Final drive | Planetary gear reduction | |||
| Travel Speed | 2km/h | |||
