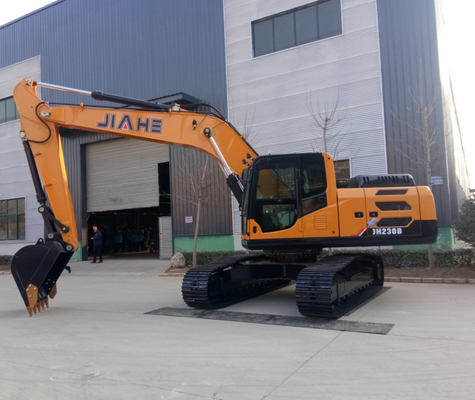

The crawler excavator is an economic middle type excavator, which matched CUMMINS engine with strong power and low consumption and low noise and environment protection .Fitted international famous brand main pump and valves and motor from KOREA, addoped the full hydraulic servo pilot operation system and hydraulic oil radiator ensure the machine has high working efficiency, The professional structural parts and mechanism welding by robot, ensure the machine has reliability and durability, the machine installed the luxury closed cabin with A/C and LCD display and LED lamp etc, The humanized design , ensure the machine can comfortable operation and convenient maintenance.
| Emission standard | stage III |
| Make/Model | Cummins/ QSB7-C166 |
| Rated power | 124kw/2050rpm |
| number of cylinder for engine | 6 |
| Max. travel speed | 5.6km/h |
| standard bucket capacity | 1.1m3 |
| machine weight | 22500kg |
| overall dimension | 9600mm*2990mm*3000mm |
| max. digging height | 9680mm |
| Max. dumping height | 6770mm |
| Max.digging depth | 6130mm |
| Max. digging radius | 9935mm |
