Product use characteristics

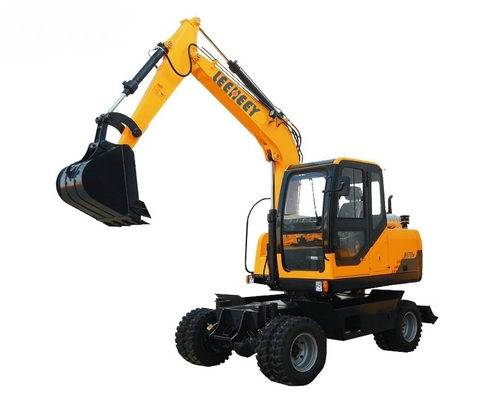

The excavator is an economic type wheel excavator ,which matched XINCHAI engine with strong power and low consumption and environment protection
Fitted domestic brand main pump and valves .
Adopted imported swing motor , domestic mechanical driving system
Adopted hydraulic pilot servo operation system and hydraulic oil radiator ensure the machine have high working efficiency .
The professional structural parts and working mechanism , ensure the machine has reliability and durability .
The breaking pipeline equipped improve the working performance .
Installed luxury full seal cabin with A/C and LCD display and LED lights etc.The humanized design , ensure the machine can comfortable operation and convenient maintenance.
NO | DESCRIPTION |
1 | 1-China XINCHAI A498BZG type engine , 48kw/2300rpm.TIER III/stage III, Turbocharged 2-Domestic TJHD brand pump and RAYLION brand valves 3-KOREA JK brand slewing motor 4-Luxury full seal cabin with A/C and LCD display and LED lights etc. 5-KOREA Hydraulic pilot servo operation system 6-Tire model: 7.50-16(Number--8) 7-With broken pipeline system 8- Bucket capacity: 0.21m³ 9-Mechanical driving system 10-wih dozer blade 11-with outrigger |
2 | OPTYIONAL ACCESSORIES: 1-AUGER 2-BREAKER 3-LOG GRAPPLE |
Specification
Engine | |
Emission Standard | Tier 3/ Stage III |
Make | XINCHAI |
Model | A498BZG |
Power /Rotation speed | 48kw(65HP)@2300rpm |
Number of cylinder | 4 |
DRIVING SYSTEM | |
Maximum Travel speed | 30km/h |
Tire model | 7.50-16 |
Number of tires | 8 |
Driving type | Mechanical drive(Front/Rear) |
Steering type | Steering wheel |
TRANSMISSION | |
Forward gears | 5 |
Reverse gears | 1 |
BRAKE SYSTEM | |
Driving brake | Air break |
Parking brake | Disc break |
Emergency brake | Foot brake |
PERFORMANCE PARAMETER | |
Standard Bucket capacity | 0.21m³ |
Swing speed | 12rpm |
Maximum Grade ability | 25° |
Maximum Bucket digging force | 45KN |
Maximum Arm digging force | 36KN |
Hydraulic system pressure | 20Mpa |
Machine weight | 7000kg |
Fuel tank | 118L |
Hydraulic oil tank | 110L |
MACHINE SIZE | |
Overall dimension (L*W*H) | 5930mm*2205mm*2850mm |
Height of cabin | 2850mm |
Wheel base | 2400mm |
Tread | 1675mm |
Minimum Ground clearance | 260mm |
Swing radius at tail | 1940mm |
WORKING RANGE | |
Maximum Digging height | 5865mm |
Maximum Dumping height | 4212mm |
Maximum Digging depth | 3290mm |
Maximum Vertical digging depth | 2616mm |
Maximum Digging radius | 5820mm |
Minimum swing radius | 2296mm |
Maximum lifting height of dozer blade | 310mm |
Maximum cutting depth of dozer blade | 130mm |
Product details
1. Loaded into container directly, full consolidated.
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
* Technical consultation
After-Sales Service
* Training how to instal the machine,
* Training how to use the machine.
* Engineers available to service machinery overseas.
* Parts mailing
* Technical consultation
Tai'an LEEHEEY Machinery CO.,LTD is a professional supplier which can provide of "LEEHEEY" series of engineering machinery, like skid steer loaders, mini loaders, mini excavators, ditching machines, and related attachments, which are widely used in landscaping, highway maintenance, agriculture, construction engineering, port clearance, municipal engineering, animal husbandry and other industries.
Our sophisticated equipments, advanced technologies, meticulous design, strict ISO9001 quality standard system, scientific management will guarantee the first- class products in the field.
“Leeheey” series products use domestic and foreign high-quality material and accessories Reliable quality, stable performance is the best choice for various construction.
1.Q: How to get an accurate quotation?
A:To get a quotation list, please send inquiry on Alibaba or send email to us directly. The email addresses are shown in the contact detail page. As we have different models and different implements, please indicate following details in your inquiry email.
1) Output (how many HP) or Model No.
2 ) Cooling system (water cooling system / radiator)
3) Starting method (hand crank / electric (motor ) start)
4) Order quantity: sample order or container order
These are very important for providing you an accurate and favorable price.
2. Q: What’s your payment item ?
A: T/T, L/C.
3. Q:About the shipment
A:Usually if you didn't indicate the shipping requirement in the inquiry email, we will quote on FOB price which doesn't include shipping cost.
If you need us ship the machine to your country, please also tell us the destination port.
4. Q:What’s your delivery time ?
A: Within 20 days after receiving the deposit.
5. Q:Do you have export experience?
A: Yes, more than 10 years.
We have exported our products to Australia,USA, Russian, India, and Asia market,Canada and other EURO countries.
