Features

Specifications

Applicable Industries: Farms, Home Use, Construction WorksÂ , Energy & Mining

Showroom Location: None

Condition: New

Type: Mini Loader, Skid Steer Loader, Lorry Loader

Moving Type: Wheel Loader

Dimension(Long * Breadth * High): 4800*1400*1400 Mm

Warranty: 1 Year

Machine Weight: 3000 Kg, 3000kg

Hydraulic Pump Brand: Lianke

Engine Brand: Lianke

UNIQUE SELLING POINT: High Operating Efficiency

Power: 15kw

Machinery Test Report: Provided

Video Outgoing-inspection: Provided

Marketing Type: New Product 2022

Warranty Of Core Components: 1 Year

Core Components: Engine, Gear, Motor

Product Name: Mucking Loader

Loading Ability: 50m3/h

Total Motor Power: 15kw

Ground Clearance: 210mm

Wheel Base: 1300mm

Digging Width: 2200mm

Digging Height: 2100mm

Digging Distance: 1600mm

Basic Infomation

Payment & Shipping Terms

Packaging Details: FCL delivery: fixed with steel wire rope and rolling belt

Supply Ability: 100 Set/Sets per Month

Product Description

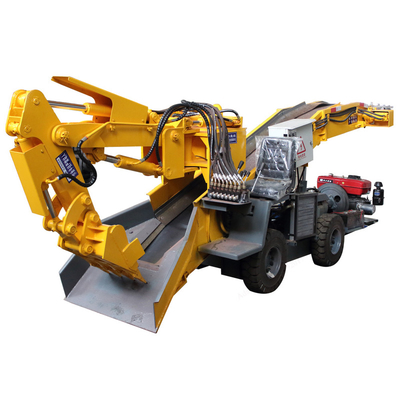

Peru market hot sale mucking loader for rock/mining excavator /hydraulic muck loader machine

Round dustpan opening for use in pipes

The square dustpan is suitable for use in narrow mines

Features:
1.The conveyor of this wheel mucking loader or wheel haggloader can discharge the rock into the auto dumper, shuttle mining car,side-dumping car, belt conveyor, skip and other transshipment equipment. The dumping height can be designed according to the requirements of customers.
2. It is environmental-friendly, low consumption, high efficiency, etc. Thus, the mucking loader or haggloader, is essential and advanced mining equipment which can be used to replace manpower and other mechanical equipment.
3.By adopting the manual operated value, the wheel mucking loader can be operated easily. With a seat and cab, the intensity of work can be alleviated. Its driving force includes dynamo and diesel is optional.

Working site

The mucking loader also known as haggloader or tunnel excavator, is a type of underground construction mucking loading machinery mainly used in excavating of tunnel mining, mine engineering, narrow space mining operation such as metal mine, water transferred roadway, Urban jacking pipe, and etc. Besides, it can also be used to collect and transport ( convey ) different kinds of clastic rock from various engineering.

Our mucking loader is with a different capacity of 40 cubes, 50 cubes, 60 cube, 80 cube, 100 cube, 120 cube per hour. Mucking loader can be divided into different types: coal mine, rock load and excavation, tunnel excavation, underground engineering.While, according to the different mining or tunneling conditions, we can especially design the all kinds of haggloaders to meet customers' needs, such as crawler muck loader, track mucking loader, wheel mucking loader, roller heading mucking machine.

work inside mine

work in tunnel

work in pipe-jacking/tube

If you are also interested in our mini dumper, Please click the above picture,
It can be skipped to mini dumper product page, you can check the details.

Specification

When your mine slope is less than 8 degrees, you can use wheel type
If your mine slope is more than 8 degrees, please click " Available item " to check crawler type.

When your mine width is more than 1.4M, height is more than 1.75M,
Our ZWY-50H model underground diesel loader can go inside your mine to work.

If your mine size is larger, please contact us, we have larger models to meet your needs

ZWY-50H model Mucking loader technical parameters

Techinal Data			Functional Parameters
Overall Dimension	480014001400 mm	Loading Ability	50 m3/h
Ground Clearance	210mm	General power	15 kw
Wheel Base	1300 mm	Weight	3000kg
Digging Width	2200 mm	Climbing ability	≤ 10°
Digging Height	2100 mm	Belt Speed	0.63 m/s
Digging Depth	700 mm	Travelling Speed	2km/h
Digging Distance	1600 mm	Rated Work Pressure	16 Mpa
Dumping Height	1400 mm ( variable )	Transporting Way	Belt
Dumping Distance	1500 mm ( variable )	Moving Way	Solid Tire
Operating Mode			Multiway value
Adaptive tunnel dimension ( Width * Height )			≥1.4*1.75M

Normally, before we quoted you our model machine, we would like to ask you some questions,
To provide the most suitable model machine according to your mine or tunnel information.
Please check the specific size of our model ZWY-50H

When your mine width is more than 1.4M,height is more than 1.75M,
Our ZWY-50H model machine can go inside your mine

From the left picture, you could see that,
Normally, for the mine, we need to leave space for emergency matters, cable lines and ventilating device.

With considering that, our Model ZWY-50H can be apply to the mine or tunnel which section is more than 1.55M*1.75M

When you send inquiry, please provide the most detailed information of your mine or tunnel information,
We can save time to provide you the most suitable model machine according to your information.
Questions is as follows:
Q1: What kind of mine or tunnel you are going to use machine ? Such as gold mine or diversion tunnel?
Q2: What is your mine width and height ? Has curve inside your mine ?
Q3: What is your mine or tunnel slope ? More than 8 degrees ?
Q4: Do you have transporting vehicle behind our machine ? what is the size ?

Specific Details

For the wheel type mucking loader, we have 2 types, Type A, rotate at original place. Type B, wheel bridge structure.

Type A,rotate at original place ,this type machine is suitable to use in narrow mine,have a curve inside tunnel ,which has smaller radius of turning circle

Type B,wheel bridge structure,this type of machine uses front axle and rear axle ,which makes the chassis structure.This type has reliable quality and easy to maintenance

In this product page, we would like to introduce sliding structure mucking loader machine. Model ZWY-50H,number 50 refers to the capacity, 50m3/hour, H means the sliding structure.
If you have interested in our wheel bridge structure, please contact me, I will send video and details to explain.The following is all the information of model ZWY-50H.

Sliding chassis structure of mucking loader ( We can customize machine width )

We can customize the narrowest width, which machine can work in narrow place.
Sliding chassis structure has 2 pieces hydraulic motor to drive the machine, one hydraulic motor in A side, to drive 2 wheels, the other hydraulic motor in B side, to drive another 2 wheels. The chassis is made by our factory, so we can customize the C length, to achieve machine width customize. While the wheel bridge structure is mainly of bridge, which has limitation of width.

This picture you can see, how sliding structure to achieve rotate at original place.
D1 and D2 wheel is in one row, they will move together, at the same time, the opposite 2 wheels in one row,Then, it can achieve rotate at original place, if you still not understand, please contact me to ask video.

The above is the conveyor and diesel engine parts in stock

Wheel bridge chassis structure of mucking loader, ( You can click the above picture to check details )

The chassis part consists of frame, front axle, rear axle, motor ( explosion- proof motor ), hydraulic gear pump, hydraulic motor,oil tank and etc. When the machine is connected with electricity, the motor works to drive the oil pump through the hydraulic transmission control system, then, make the hydraulic motor to work. The hydraulic motor will let the gearbox to drive the front, rear axle and the steering cylinder. In this way, the machine can be walking forward, walking backward and turn of the machine.

Customized

The tail of the loader can be lengthened, or a special belt conveyor machine can be customized ,The following items need extra money.We can lengthen the tail part, the tail part can be folded, adding second-pumping conveyor.

Conveyor type: belt type, scraper type, hopper type. Belt type: materials used for conveying loose or small particles, such as soil, low density stones, etc. Advantages: high transport efficiency. Scraper type: used in mines with slopes greater than 18 degrees, when transporting stones, single chain is used in the middle of the scraper. Disadvantages: Easy Card material, high price. Hopper type: double chain on each side of the hopper. Materials conveying large blocks and sharp sharp angles. Long service life and large conveying angle.

Walking method: tire type or crawler type

Note:If the slope of your construction environment is more than 8 degrees, it need to use a crawler-type mucking loader

Breaker / Hammer for mucking loader
If you need the breaker for hard rock or clay, we can also add for you.
please contact me to receive youtube link of how the break works

Proof motor
a/we can customize the explosion proof motor ,which for the machine to use in the coal mine
b/we can customize the motor into three phase 220V ,60HZ,which we made for America customer before.

Professional motor supporting manufacturers, we can provide three-phase, 220V 380V 440V 660V, 50HZ and 60HZ, three-phase motors of various specifications for different national voltage requirements.
