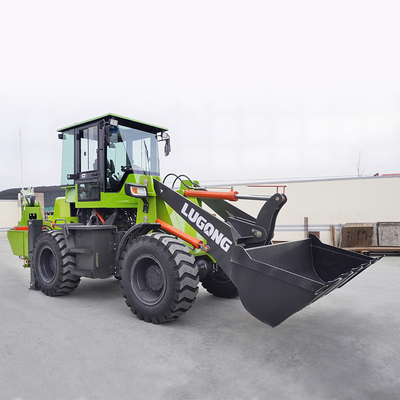

LX945-65 | ||||||
Transport dimension | Engine | |||||
L*W*H（mm) | 7000×2200×2900 | Model | EURO3 YUDONG4105 | |||
WHEEL BASE（mm) | 2720 | TYPE | Turbocharged High Pressure Common Rail | |||
WHEEL TRACK（mm) | 1700 | Rated Power（KW) | 110 | |||
Min.Ground Clearance（mm) | 320 | Rated Speed（r/min) | 2400 | |||
The Main Performance Parameter | Cylinder-Insider | 4-105 | ||||
Pressure of the system（Mpa) | 28 | Transmission System | ||||
Weight（kg) | 7300 | Gearbox | Power shift | |||
MAX. SPEED（Km/h) | 35 | Gears | TWO FORWARD ,TWO REVERSE GEARS | |||
Maximum degree of climbing（°） | 35 | hydraulic torque converter | Split torque converter 280 | |||
Min.turning radius（mm) | 4300 | Steering System | ||||
Mining parameters | TYRE | Articulated fully hydraulic steering | ||||
MAX.DIGGING DEPTH（mm) | 3000 | Swing Angle（°） | 38 | |||
BUCKET DUMPING HEIGHT（mm) | 4100 | AXLE | ||||
MAX.DIGGING RADIUS（mm) | 4800 | TYPE | Big wheel rim | |||
BACKHOE WIDTH（mm) | 60 | TYRE | ||||
BACKHOE CAPACITY（m³) | 0.25 | MODEL | 16/70-24 | |||
Max. Digging Height（mm) | 5600 | SERVICE BRAKE | Air over hydraulic caliper disc brake | |||
Swing Angle of Excavator Grab（°） | 360 | EMERGENCY BRAKE | Automatically air-cut brake | |||
Loading Parameters | Fuel Capacity | |||||
MAX.DUMPING HEIGHT（mm) | 3600 | fuel tank （L） | 70 | |||
MAX.DUMPING DISTANCE（mm) | 900 | hydraulic oil tank （L） | 140 | |||
BUCKET WIDTH（mm) | 2200 | other | ||||
BUCKET Capacity（m³) | 1.2 | Driving type | Four-wheel drive | |||
LOADING LIFTING HEIGHT（mm) | 4750 | Transmission form | Hydrodynamic transmission | |||
braking distance （mm) | 7500 | |||||
operating system | Electromagnetic hydraulic pilot control system | |||||
